Air Control Box, 2 Diver, 3LP Supply,2Pneumo,FSW

TWO DIVER AIR CONTROL BOX (TDACB) WITHOUT COMMUNICATIONS

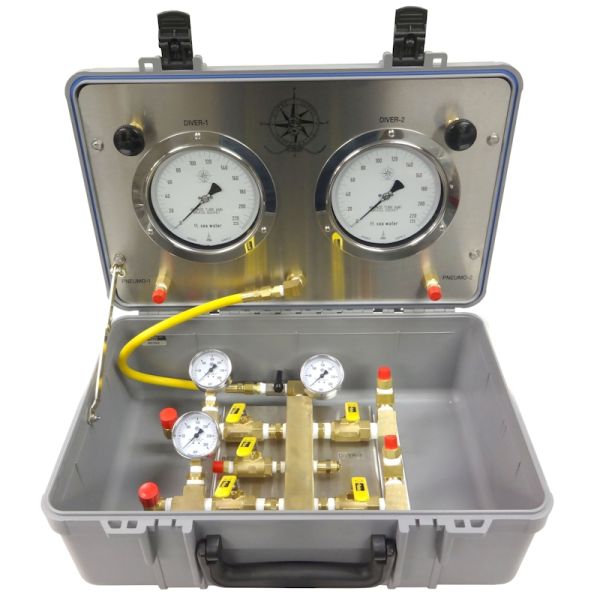

The Two Diver Air Control Box (TDACB) controls the diver's air supply from a low pressure source and allows monitoring of the diver's depth. It is composed of materials designed to resist offshore/saltwater environments. The case is made out of high-impact plastic and is water tight when closed and locked. A stainless steel faceplate resists corrosion and houses two 0.50% accuracy pneumo gauges which are plumbed with pneumatic nylon tubing. The air manifold is made of brass for rugged, reliable use in the field. The TDACB is also available in a dual scale version (TDACB1) and versions with communications (P/N: TDACBD and TDACBD1).

Features
Water resistant case
Stainless steel faceplate with screen printed labels
6" pneumo gauges pressurized with individual needle valves and protected against overpressurization
Two #10 JIC and one O2 connection inlets for primary and secondary air supplies
O2 connection outlets for umbilical connections

Specifications
Faceplate   Stainless steel with screen printed labels
Pneumo Gauges   6" face   0-225 FSW range   1' increments   0.50% accuracy   1/4” NPT male connection   Brass internals   Six month factory certification
Manifold   1000 PSI brass fittings   1/2” ball valves rated to 600 PSI   Check valves rated to 800 PSI
Pressure Gauges   2.5" face   0-300 PSI range   Stainless steel case   Brass internals
Pneumo Supply   300 PSI rated hose   Brass reusable fittings
