Air Control Box, 2 Diver,2HP/2LP,1 Reg.,Whips,FSW

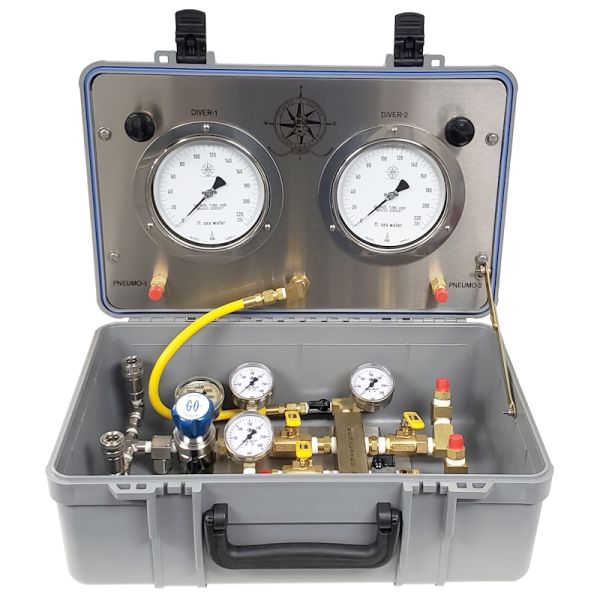

HIGH PRESSURE TWO DIVER AIR CONTROL BOX (TDACBHP17) WITHOUT COMMUNICATIONS

The High Pressure Two Diver Air Control Box (TDACBHP17) controls the diver's air supply from low and high pressure sources and allows monitoring of the diver's depth. It is composed of materials designed to resist offshore/saltwater environments. The case is made out of high-impact plastic and is water tight when closed and locked. A stainless steel faceplate resists corrosion and houses two 0.50% accuracy pneumo gauges which are plumbed with pneumatic nylon tubing. The high pressure portion of the air manifold is made using stainless steel and the low pressure portion is made of brass for rugged, reliable use in the field. The TDACBHP17 is also available in a dual scale version (TDACBHP18).

Features
Water resistant case
Stainless steel faceplate with screen printed labels
6" pneumo gauges pressurized with individual needle valves and protected against overpressurization
Two stainless steel QD connection inlets for high pressure air supply
Two 48" long high pressure air supply whips
#10 JIC and one O2 connection inlets for primary and secondary low pressure air supplies
O2 connection outlets for umbilical connections

Specifications
Faceplate   Stainless steel with screen printed labels
Pneumo Gauges   6" face   0-225 FSW range   1' increments   0.50% accuracy   1/4” NPT male connection   Brass internals   Six month factory certification
High Pressure Manifold   5000 PSI stainless steel fittings   Check valve rated to 6000 PSI   Regulator rated to 6000 PSI
Low Pressure Manifold   1000 PSI brass fittings   1/2” ball valves rated to 600 PSI   Check valves rated to 800 PSI
Pressure Gauges   2.5" face   0-300 PSI range   Stainless steel case   Brass internals
Pneumo Supply   300 PSI rated hose   Brass reusable fittings
