Air Control Box,2 Diver,3LP Sup,FSW,Radio,1st Stg.

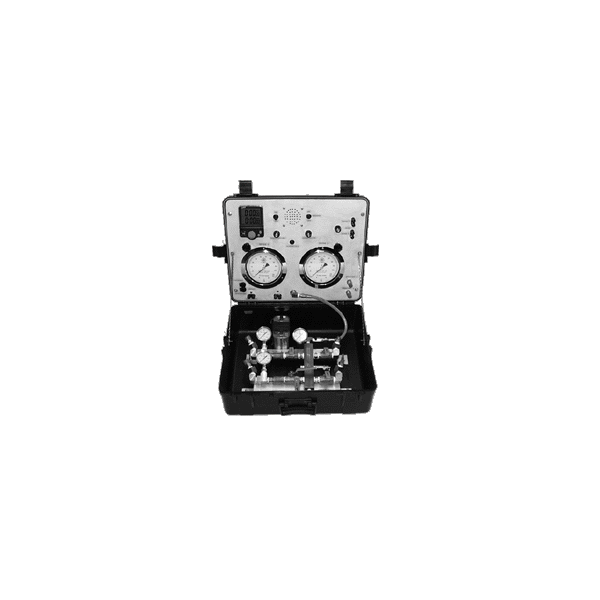

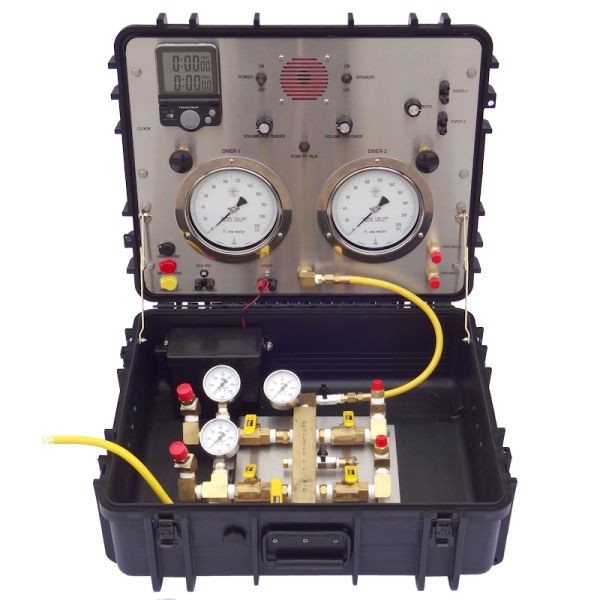

TWO DIVER AIR CONTROL BOX (TDACBD) WITH COMMUNICATIONS

The Two Diver Air Control Box Deluxe (TDACBD) controls the diver's air supply from a low pressure source, allows monitoring of the diver's depth, and controls the diver's communications. It is composed of materials designed to resist offshore/saltwater environments. The case is made out of high-impact plastic and is water tight when closed and locked. A stainless steel faceplate resists corrosion and houses two 0.50% accuracy pneumo gauges which are plumbed with pneumatic nylon tubing. The air manifold is made of brass for rugged, reliable use in the field. The TDACBD is also available in a dual scale version (TDACBD1) and versions without communications (P/N: TDACB and TDACB1).

Features
Water resistant case
Stainless steel faceplate with screen printed labels
6" pneumo gauges pressurized with individual needle valves and protected against overpressurization
Two #10 JIC and one O2 connection inlets for primary and secondary air supplies
O2 connection outlets for umbilical connections
Two diver, two-wire air radio

Specifications
Faceplate   Stainless steel with screen printed labels
Pneumo Gauges   6" face   0-225 FSW range   1' increments   0.50% accuracy   1/4” NPT male connection   Brass internals   Six month factory certification
Manifold   1000 PSI brass fittings   1/2” ball valves rated to 600 PSI   Check valves rated to 800 PSI
Pressure Gauges   2.5" face   0-300 PSI range   Stainless steel case   Brass internals
Pneumo Supply   300 PSI rated hose   Brass reusable fittings
Communications   Two diver, two-wire design   8 Watt external speaker   Diver and tender voluem controls   Audio record out jack   External power jack   Diver select switch for individual or both divers   Speaker on/off switch   Earphone & headset jacks   Comes with deluxe headset with boom mic
