Breaker, U/W, 87#,1500- 2000PSI,7-9GPM,1 1/8" Hex
was
$3,214.00
Special Price
$2,892.60
Availability:
In stock
SKU
BR87320

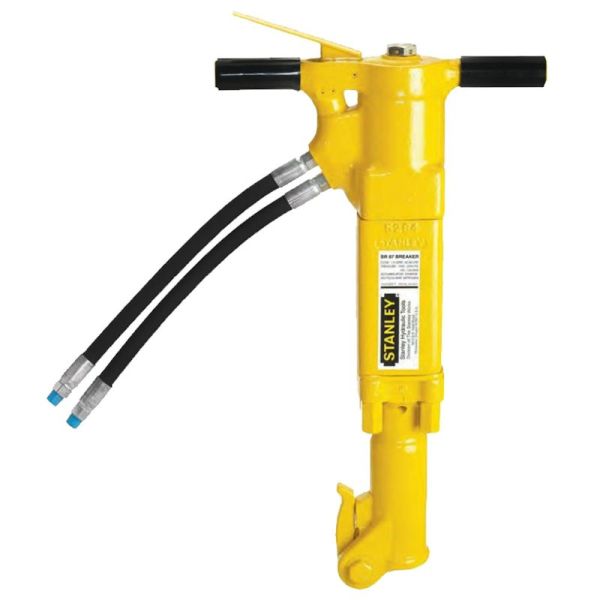

STANLEY BR87 UNDERWATER BREAKER/DRIVER (BR87320)
The BR87 is the largest breaker in Stanley Hydraulic Tools line up of underwater paving breakers. The BR87 is in the 90 lb class of breakers and with it's long piston stroke, is our hardest hitting hand held breaker. It is used for heavy concrete and rock breaking, coral removal and rod and anchor driving. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1-1/8" x 6" hex chuck and latch retainer. Painted hi-visibility yellow.
The BR87 is the largest breaker in Stanley Hydraulic Tools line up of underwater paving breakers. The BR87 is in the 90 lb class of breakers and with it's long piston stroke, is our hardest hitting hand held breaker. It is used for heavy concrete and rock breaking, coral removal and rod and anchor driving. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1-1/8" x 6" hex chuck and latch retainer. Painted hi-visibility yellow.
| BR87320 Specifications |
|---|
| Performance: 1080 bpm at 8 gpm |
| Steel Capacity: 1-1/8" x 6" hex |
| Handle Type: T-handle |
| Circuit Type: Open center |
| Flow Range: 7-9 gpm (26-34 lpm) |
| Optimum Flow: 8 gpm (30 lpm) |
| Working Pressure: 1500-2000 psi (105-140 bar) |
| Full Relief Setting: 2250 psi (155 bar) |
| Weight (less tool bit): 85 lb (39 kg) |
| Length: 29" (73.6cm) |
| Width (at handles): 16" (41cm) |
| Hydraulic Ports: -8 SAE o-ring |
| Couplers: -No (see Accessories) |
| Hose Whips: Yes (3/8" NPT male) |
| BR67320 Features |
|---|
| T-handle with large on/off trigger for preceise control |
| Stainless steel spool and fasteners |
| Trouble free diaphragm accumulator provides additional blow energy and reduces recoil |
| Feathering on/off valve allows easy initial tool bit placement |
| Uses standard 1-1/8" x 6" hex shank tool bits |
| Four tie rod design for durability |
| Operates in any position |
| Modular design for ease of service |
| Latch retainer |
| BR67320 Accessories |
|---|
| 03971: Flush-Face Coupling Set, 3/8" NPT |
| 03974: Flush-Face Coupling Set, 1/2" NPT |
| 31848: Dual Hose, 50' x 1/2", with couplers |
| 31972: Dual Hose, 25' x 1/2", with couplers |
| 58633: Twinned Hose, 25' x 1/2", with couplers |
| 58634: Twinned Hose, 50' x 1/2", with couplers |
| 02331: Clay Spade, 1-1/8" Hex, 5-1/2" Wide Blade |
| 02332: Asphalt Cutter, 1-1/8" Hex, 5" Wide Blade |
| 02333: Moil Point, 1-1/8" Hex, 14" under collar |
| 02334: 3" Wide Chisel, 1-1/8" Hex, 14" under collar |
| 03990: Narrow Chisel, 1-1/8" Hex, 14" under collar |
| 04176: Rod Driver, 1-1/8" Hex, 1" rod |
| 08106: Asphalt Wedge, 1-1/8" Hex |
| Vendor | Stanley |
|---|
