Compressor, Quincy,Pkg,Kubota,Air Start,Clutch
was
$69,995.00
Special Price
$67,995.00
Availability:
Out of stock
SKU
5120QK3

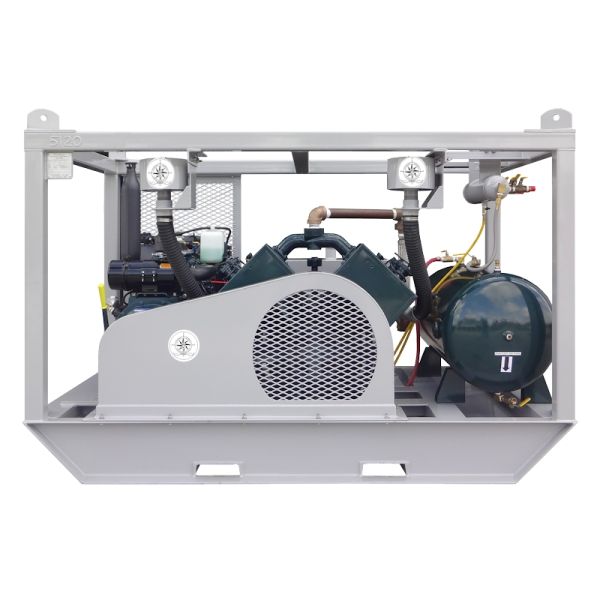

5120QK3 COMPRESSOR PACKAGE
Our 5120QK3 air compressor package uses a Quincy 5120 compressor pump driven by an EPA Tier 4, recoil start, Kubota diesel engine. For over 75 years, Quincy's family of QR-25 Series compressor pumps is still highly regarded as one of the most respected reciprocating compressor pumps. Kubota has grown into the world-leading manufacturer of emission compliant compact multi-cylinder, liquid-cooled diesel engines below 100 HP. The 3" powder coated steel skid has a belt guard, drip pan, forklift slots and four lifting eyes. The compressor package is shipped with air quality testing certification.
Unit Specifications:
Compressor Specifications
For over 75 years, Quincy’s QR-25 Series reciprocating compressors have been the smart choice for industrial, military and seagoing installations across the country and around the world. Even today, the modern QR-Series is still highly regarded as a line of the world’s most respected reciprocating compressors.
Engine Specifications
The Kubota three-cylinder, liquid-cooled diesel engine is EPA Tier 4 compliant and has numerous features such as built-in solenoid, low fan position and single side serviceability.
The 5120QK3 compressor package is also available with integrated 3-stage breathing air filtration (P/N: 5120QK3-BAF).
Our 5120QK3 air compressor package uses a Quincy 5120 compressor pump driven by an EPA Tier 4, recoil start, Kubota diesel engine. For over 75 years, Quincy's family of QR-25 Series compressor pumps is still highly regarded as one of the most respected reciprocating compressor pumps. Kubota has grown into the world-leading manufacturer of emission compliant compact multi-cylinder, liquid-cooled diesel engines below 100 HP. The 3" powder coated steel skid has a belt guard, drip pan, forklift slots and four lifting eyes. The compressor package is shipped with air quality testing certification.
Unit Specifications:
| Quincy 5120 compressor pump |
| Kubota D1703 diesel engine |
| 3" Tubular steel skid with drip pan |
| Enclosed belt guard |
| Four lifting eyes |
| Radiator and fan |
| Muffler and raincap |
| Small, 3 gauge panel with temperature, oil pressure and vibration hour meter |
| 60 gallon ASME/USCG coded volume tank rated to 250 PSI with seal welded legs and data plate |
| Four valve manifold |
| 30 gallon steel fuel tank |
| Aluminim air intake housings |
| 250 PSI brass plumbing |
| Approximate weight: 3,465 lb |
| Approximate dimensions: 90"L x 52"W x 54"H |
Compressor Specifications
For over 75 years, Quincy’s QR-25 Series reciprocating compressors have been the smart choice for industrial, military and seagoing installations across the country and around the world. Even today, the modern QR-Series is still highly regarded as a line of the world’s most respected reciprocating compressors.
| Quincy 5120 compressor pump |
| 88.5 CFM free air delivery at 200 PSI |
| 123 CFM displacement |
| Four cylinder, 2 stage |
| 100-250 PSI rating |
Engine Specifications
The Kubota three-cylinder, liquid-cooled diesel engine is EPA Tier 4 compliant and has numerous features such as built-in solenoid, low fan position and single side serviceability.
| Kubota D1703 diesel engine |
| Air start |
| Clutch |
| 35 HP |
| Liquid cooled |
| Pressurized lubrication |
The 5120QK3 compressor package is also available with integrated 3-stage breathing air filtration (P/N: 5120QK3-BAF).
| Vendor | Divers Supply, Inc. |
|---|
