Drill, Hammer,2"Dia.Max,736 Skil Hex,Hoses,Stanley
was
$4,943.00
Special Price
$4,448.70
Availability:
In stock
SKU
HD45310

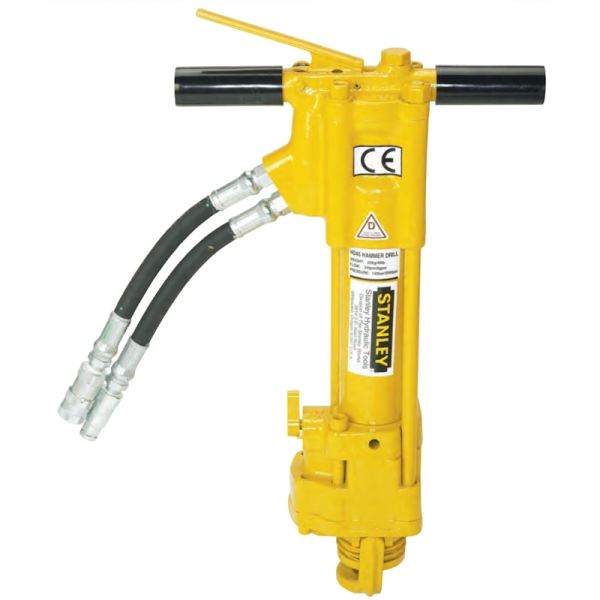

STANLEY HD45 UNDERWATER HAMMER DRILL (HD45310)
The Stanley Hydraulic HD45 Hammer Drill is a heavy duty underwater model designed for drilling in concrete, rock and masonry.
The feathering on/off valve and adjustable rotation speed allows easy drill bit start-up and precise control. The high torque rotation motor drives standard 736 Skil hex carbide tipped drill bits and is capable of drilling a 2" diameter hole up to 29" deep. Fluted drill bits require no water or air to clear holes. Ideal for drilling holes for setting anchor bolts. Painted hi-visibility yellow.
The Stanley Hydraulic HD45 Hammer Drill is a heavy duty underwater model designed for drilling in concrete, rock and masonry.
The feathering on/off valve and adjustable rotation speed allows easy drill bit start-up and precise control. The high torque rotation motor drives standard 736 Skil hex carbide tipped drill bits and is capable of drilling a 2" diameter hole up to 29" deep. Fluted drill bits require no water or air to clear holes. Ideal for drilling holes for setting anchor bolts. Painted hi-visibility yellow.
| HD45310 Specifications |
|---|
| Chuck Capacity: Up to 2" diameter or 4" core bit |
| Steel Capacity: 736 Skil hex |
| Circuit Type: Open Center |
| Flow Range: 7-9 gpm (26-34 lpm) |
| Optimum Flow: 8 gpm (30 lpm) |
| Working Pressure: 1500-2000 psi (105-140 bar) |
| Full Relief Setting: 2250 psi (155 bar) |
| Rotation Speed: 0-300 rpm |
| Weight (less tool bit): 49 lb (22.2 kg) |
| Length: 24.5" (62.2m) |
| Width (at Handles): 14" (35m) |
| Hydraulic Ports: -8 SAE o-ring |
| Hose Whips: Yes (3/8" NPT male) |
| HD45310 Features |
|---|
| T-Handle with large on/off trigger for precise control |
| Stainless Steel spools and fasteners |
| Forward-Reverse with adjustable bit rotation speed |
| Feathering on/off valve allows easy start and control |
| Uses 736 Skil fluted carbide tipped drill bits - requires no water/air to clear holes |
| Drills 3/4" to 2" diameter holes up to 29" deep and core drills up to 4" in diameter |
| Operates in any position |
| Trouble free drill steel latch retainer |
| DL07652 Accessories |
|---|
| 03971: Flush-Face Coupling Set, 3/8" NPT |
| 03974: Flush-Face Coupling Set, 1/2" NPT |
| 31848: Dual Hose, 50' x 1/2", with couplers |
| 31972: Dual Hose, 25' x 1/2", with couplers |
| 58633: Twinned Hose, 25' x 1/2", with couplers |
| 58634: Twinned Hose, 50' x 1/2", with couplers |
| 02280: Carbide Bit, 3/4" x 24" OAL |
| 05163: Carbide Bit, 7/8" |
| 02281: Carbide Bit, 1" x 24"OAL |
| 02282: Carbide Bit, 1-1/4" x 24" OAL |
| 05167: Carbide Bit, 1-1/2" x 24" OAL |
| 02283: Carbide Bit, 2" x 24" OAL |
| 04668: Carbide Bit, 1" x 18" OAL |
| 04896: Carbide Bit, 1-1/4" x 36" OAL |
| 27902: Percussion Core Bit, 2-1/2" diameter x 6" OAL (part #30279 required) |
| 27904: Percussion Core Bit, 3" diameter x 6" OAL (part #30279 required) |
| 30279: HD45 (Skil 736) Adapter |
| Vendor | Stanley |
|---|
