Drill, Sinker, 1" Hex x 4 1/4",Air,O.C.
was
$6,478.00
Special Price
$5,830.20
Availability:
Out of stock
SKU
SK58310

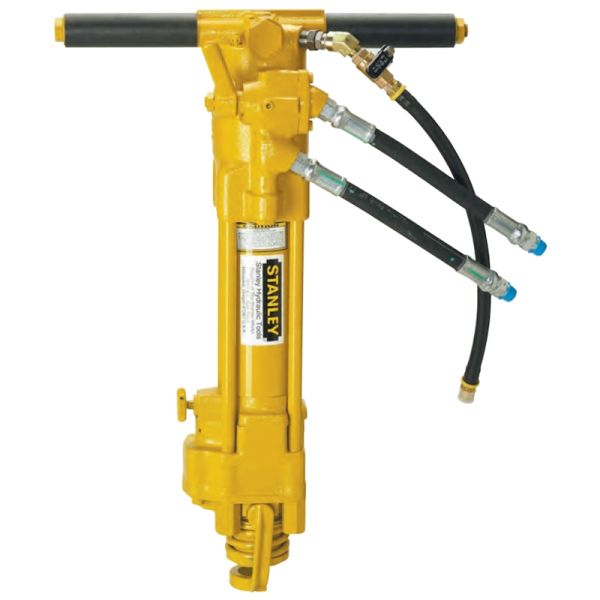

STANLEY SK58 UNDERWATER SINKER DRILL (SK58310)
The Stanley SK58 Sinker Drill is a heavy duty rock drill designed for drilling underwater in concrete, rock and masonry. The feathering on/off valve makes starting the drill bit relatively easy. The SK58 uses industry standard drill steel and can drill up to a 3" (75 mm) diameter hole up to 20' (6 m) deep. The direct drive rotation motor drives the 1" x 4-1/4" hex shank drill steel and is adjustable between 0 and 300 rpm. Air is required to clear holes of debris. Painted hi-visibility yellow.
The Stanley SK58 Sinker Drill is a heavy duty rock drill designed for drilling underwater in concrete, rock and masonry. The feathering on/off valve makes starting the drill bit relatively easy. The SK58 uses industry standard drill steel and can drill up to a 3" (75 mm) diameter hole up to 20' (6 m) deep. The direct drive rotation motor drives the 1" x 4-1/4" hex shank drill steel and is adjustable between 0 and 300 rpm. Air is required to clear holes of debris. Painted hi-visibility yellow.
| SK58310 Specifications |
|---|
| Drill Capacity: 3" (7.6cm) Diameter hole, up to 20' (6m) deep |
| Steel Type: 1" x 4-1/4" Hex Shank |
| Circuit Type: Open Center |
| Flow Range: 7-9 gpm (26-34 lpm) |
| Optimum Flow: 8 gpm (30 lpm) |
| Working Pressure: 1500-2000 psi (105-140 bar) |
| Full Relief Setting: 2250 psi (155 bar) |
| Rotation Speed: 0-300 rpm |
| Weight (less tool bit): 70 lb (31.7 kg) |
| Length: 26" (66cm) |
| Width (at handles): 18" (46cm) |
| Hydraulic Ports: -8 SAE o-ring |
| Couplers: No (see Accessories) |
| Hose Whips: Yes (3/8" NPT male thread) |
| Air Port: 1/2" NPT |
| SK58310 Features |
|---|
| T-Handle with feathering on/off valve allows easy start and control |
| Rotation speed adjustable between 0 and 300 rpm |
| Stainless Steel spools and fasteners |
| Four tie rod design for durability |
| Uses standard rock drill steels: 1" x 4-1/4" Hex Shank |
| Drills up to 3" diameter hole up to 20' deep |
| Operates in any position |
| Requires air to clear holes of debris |
| Trouble free drill steel latch retainer |
| SK58310 Accessories |
|---|
| 03971: Flush-Face Coupling Set, 3/8" NPT |
| 03974: Flush-Face Coupling Set, 1/2" NPT |
| 31848: Dual Hose, 50' x 1/2", with couplers |
| 31972: Dual Hose, 25' x 1/2", with couplers |
| 58633: Twinned Hose, 25' x 1/2", with couplers |
| 58634: Twinned Hose, 50' x 1/2", with couplers |
| 05177: Carbide Rock Bit, for use with Air, 1-3/8" Diameter, H-Thread - Requires Drill Steel |
| 05178: Carbide Rock Bit, for use with Air, 1-1/2" Diameter, H-Thread - Requires Drill Steel |
| 04914: Carbide Rock Bit, for use with Air, 2" Diameter, H-Thread - Requires Drill Steel |
| 05170: Drill Steel for use with Air, 1 x 4-1/4", H-Thread, 24" U/C |
| 05171: Drill Steel for use with Air, 1 x 4-1/4", H-Thread, 48" U/C |
| Vendor | Stanley |
|---|
