Filter, Element, Charcoal 5 Micron,9.75"Lx2.7"Dia.

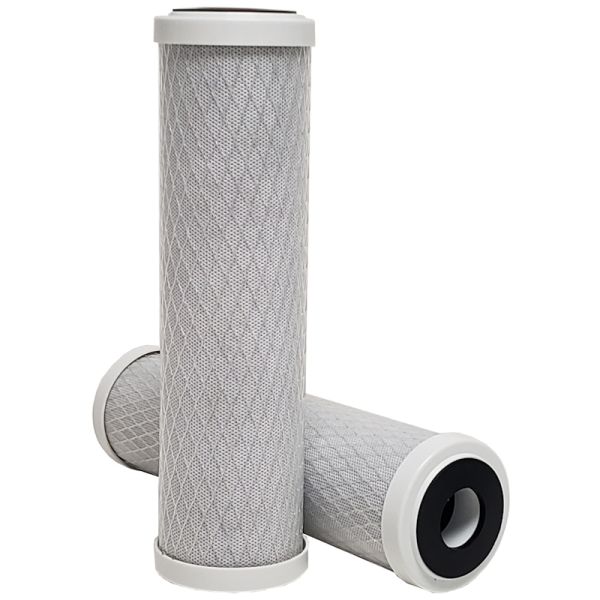

CHARCOAL FILTER ELEMENT (AP117DS)

The AP117DS charcoal filter element is typically used in the second stage of Divers Supply's 1000 and 1000 NO FRAME filtration systems. This charcoal filter element removes water vapor, odors and tastes in the air supply.

State-of-the-art computerized production machinery eliminates product variability and precision winding patterns ensure accurate filtration ratings and high retention efficiencies.

AP117DS Features
Extruded activated carbon block filter
High adsorptive capacity – effectively reduces chlorine and organic chemicals that contribute to undesirable tastes and odors
5 micron filtration - high retention efficiency
Minimal release of carbon fines
No channeling, no fluidizing or bypass
Competitively priced versus Granular Activated Carbon cartridges (GAC)
Performance tested and verified by independent laboratory

AP117DS Specifications
Pore Size: 5 microns
Nominal Length: 9.75" (24.8cm)
Outside Diameter: 2.7" (6.9cm)
Filter Media: Powdered activated carbon
Outer Wrap: Melt blown polypropylene
End Cap/Netting: Polypropylene
End Cap Adhesive: Low density polyethylene
Gaskets: Santoprene (polyethylene direct bond gaskets)
Maximum Operating Temperature: 125°F (52°C)
Maximum Operating Pressure: 250 psi (17.2 bar)
Weight: 0.9 lb (0.4 kg)
