Filtration System, 3 Stage,Plumbed,Alum. Frame,M/D
$2,295.00
Availability:
In stock
SKU
1250

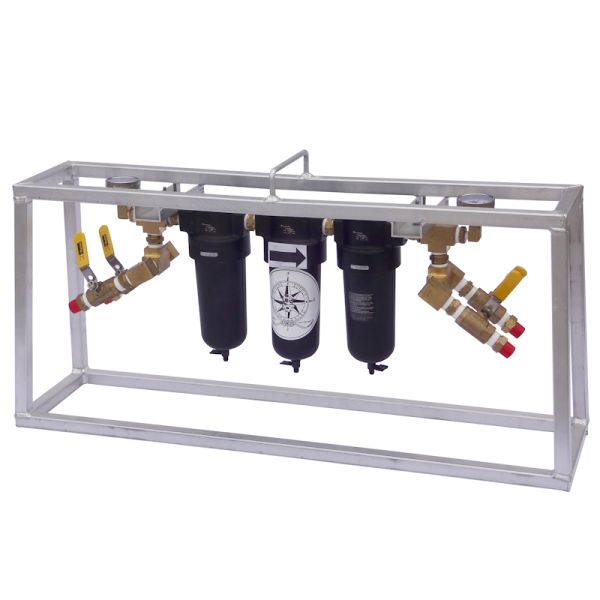

THREE-STAGE FILTRATION SYSTEM (1250)
Divers Supply's 1250 three-stage filtration system is composed of two cintered bronze particulate filter elements (40 and 5 micron) followed by and oil removal filter element.
The filter canisters are black, powder-coated, die-cast aluminum and have manual drains. The full frame is designed to physically protect the system (canisters, plumbing and pressure gauge) as well as provide stability.
Need a 3-stage filtration system without the frame for easy hard plumbed mounting? See part number 1250 NO FRAME. Want only 2-stage filtration? See part numbers 1000 and 1000 NO FRAME.
Divers Supply's 1250 three-stage filtration system is composed of two cintered bronze particulate filter elements (40 and 5 micron) followed by and oil removal filter element.
The filter canisters are black, powder-coated, die-cast aluminum and have manual drains. The full frame is designed to physically protect the system (canisters, plumbing and pressure gauge) as well as provide stability.
Need a 3-stage filtration system without the frame for easy hard plumbed mounting? See part number 1250 NO FRAME. Want only 2-stage filtration? See part numbers 1000 and 1000 NO FRAME.
| 1250 Specifications |
|---|
| Inlet: #10 JIC male |
| Outlets: #10 JIC male |
| Pressure Guage: 0-300 PSI |
| Plumbing: Brass |
| Canisters: Black, powder-coated, die-cast aluminum |
| First Stage Filter Element: 5311-03 (40 micron particulates) |
| Second Stage Filter Element: 5311-01 (5 micron particulates) |
| Third Stage Filter Element: 5351-03 (oil removal) |
| Frame: 1" (2.5cm) Square Aluminum Tube with Carry Handle |
| Dimensions: 40"L x 10"W x 18"H (102cm x 25cm x 46cm) |
| Weight: 36 lb (16.3 kg) |
| Vendor | Divers Supply, Inc. |
|---|
