Grinder, Hydraulic,5/8"-11 Abor,9",2000PSI,4-12GPM

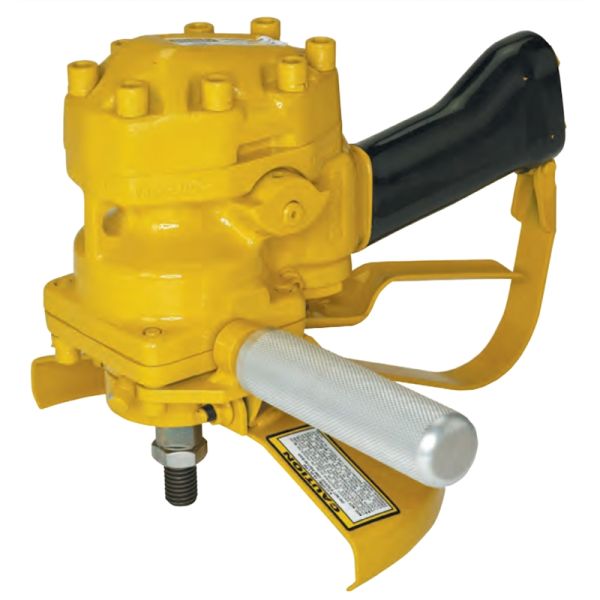

STANLEY GR29 UNDERWATER GRINDER (GR29310)

The Stanley Hydraulic GR29 Grinder is a right angle grinder ("vertical grinder") that can be used for grinding and cleaning in underwater applications with a variety of wheels, brushes and attachments. The high torque gear motor drives a standard 5/8 - 11 threaded spindle. A 9" adjustable wheel guard, two position assist handle and trigger guard are standard. Painted hi-visibility yellow.

GR29310 Specifications
Capacity: 9" (23cm) Wheel
Spindle: 5/8"–11 Threaded
Circuit Type: Open Center
Flow Range: 4-12 gpm (5-45 lpm)
Working Pressure: 1000-2000 psi (70-140 bar)
Full Relief Setting: 2250 psi (155 bar)
RPM: 3200 @ 12 gpm (45 lpm)
Weight (with guard): 15 lb (6.8 kg)
Length: 11" (28cm)
Width (with guard): 10.25" (26cm)
Hydraulic Ports: -8 SAE o-ring
Connection Size and Type: 3/8" male pipe adapter
Hose Whips: No (see Accessories)

GR29310 Features
Integral Stanley Hyrevz gear motor produces high torque
Stainless Steel spools and fasteners
Two position assist handle for right/left hand operation
Oversized trigger with guard for diver comfort
Adjustable wheel guard for infinite positions
Plastisol covered handle for comfortable ergonomic grip
Use with grinding wheels, hull scrubbing brushes, wire and nylon brushes, barnacle busters and Desmond wheels
3200 rpm @ 12 gpm (45 lpm)
Cast-in lifting eye

GR29310 Accessories
03971: Flush-Face Coupling Set, 3/8" NPT
03974: Flush-Face Coupling Set, 1/2" NPT
06830: Hose Whip 18" long, -8 SAE x 1/2" NPT
02587: Grinding wheel for metal, 9" diameter x 5/8-11 thread
02588: Grinding wheel for masonry, 9" diameter x 5/8-11 thread
03691: Grinding wheel, 7" diameter x 5/8-11 thread
05194: Adapter, 5/8-11 thread, depressed center wheel
31848: Dual Hose, 50' x 1/2", with couplers
31972: Dual Hose, 25' x 1/2", with couplers
58633: Twinned Hose, 25' x 1/2", with couplers
58634: Twinned Hose, 50' x 1/2", with couplers
