Hose, 3/8"I.D.x11/16"O.D. Aquaflow,Yellow,500PSI W
was
$5.99
Special Price
$4.95
Availability:
In stock
SKU
HDA0106
3/8" AQUAFLOW DIVER'S BREATHING GAS HOSE (HDA0106)

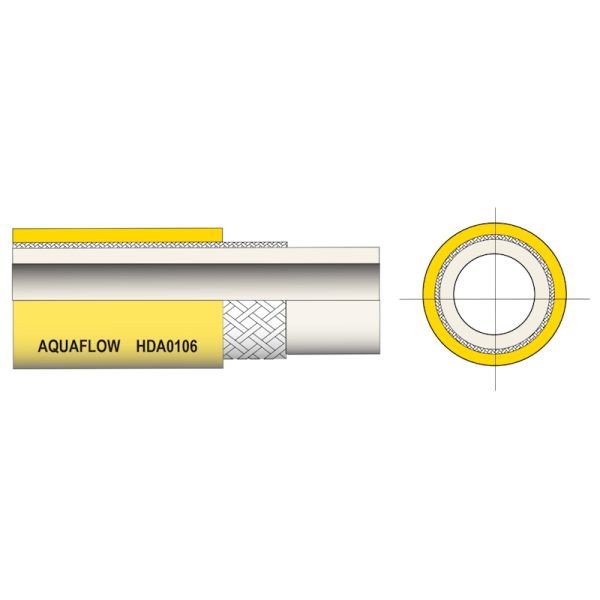

Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
HDA0106 Hose Specifications
Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
HDA0106 Hose Specifications
| Inner Diameter: 3/8" (9.5 mm) |
| Outer Diameter: 0.66" (16.8 mm) |
| Minimum Bend Radius: 2" (50 mm) |
| Working Pressure: 500 psi (35 bar) |
| Burst Pressure: 2000 psi (140 bar) |
| Weight in Air: 0.119 lb/ft (177 g/m) |
| Weight in Sea Water: -0.034 lb/ft (-50 g/m) |
| Color: Yellow |
| Vendor | Umbilicals Int'l |
|---|
