Hydraulic Unit, 12GPM 2000 PSI,Hatz,Alum.Frame
was
$16,995.00
Special Price
$15,495.00
Availability:
Out of stock
SKU
HU-012

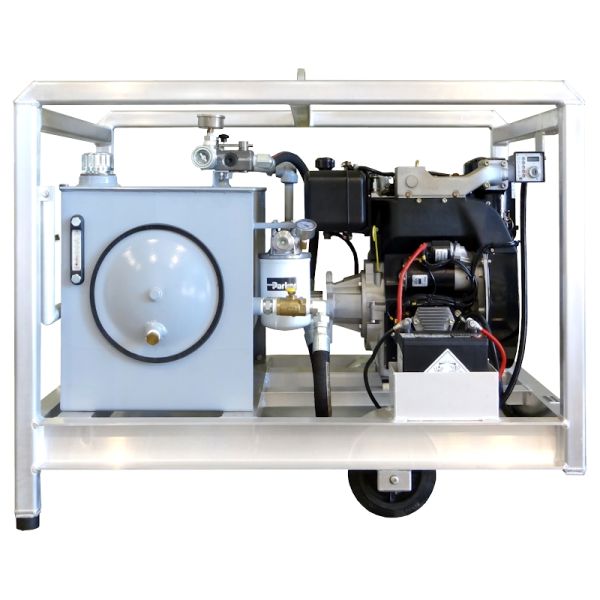

12 GPM HYDRAULIC POWER UNIT (HU-012)
Powered by a Hatz 18 HP diesel angine and possessing a 20 gallon (75 l) hydraulic oil reservoir, Divers Supply's HU-012 portable hydraulic unit provides 12 GPM (45 l/min) to run most hydraulic tools used by divers inland or offshore. The HU-012 is designed to be a rugged, reliable commercial grade hydraulic unit built to withstand harsh offshore environments.
Powered by a Hatz 18 HP diesel angine and possessing a 20 gallon (75 l) hydraulic oil reservoir, Divers Supply's HU-012 portable hydraulic unit provides 12 GPM (45 l/min) to run most hydraulic tools used by divers inland or offshore. The HU-012 is designed to be a rugged, reliable commercial grade hydraulic unit built to withstand harsh offshore environments.
| HU-012 Features |
|---|
| 12 GPM (45 l/min) flow |
| Oil sight/temp glass |
| 150 micron suction strainer |
| 5 micron spin-on filter |
| Adjustable, compensating flow control valve |
| In-line flow meter |
| Heavy duty gear pump |
| 1" Quick disconnects |
| 2" Aluminum square tube frame with wheels, handle and drip pan |
| HU-012 Specifications |
|---|
| Engine: Hatz 2G40E diesel engine |
| Flow: 12 GPM (45 l/min) |
| Operating Pressure: 2000 psi (138 bar) |
| Power: 18 HP (13.4 kw) |
| Reservoir Capacity: 20 Gallons (75 l) |
| Fuel Tank Capacity: 1.8 Gallons (7 l) |
| Filled Weight: 750 lb (340 kg) |
| Dimensions: 50"L x 38"W x 43"H (127cm x 96.5cm x 109cm) |
| Hatz 2G40E Engine Specifications |
|---|
| Diesel powered |
| 18 HP (13.4 kw) at 2800 RPM |
| Air cooled |
| 2-Cylinder, 4 stroke |
| Electric start |
| Vendor | Divers Supply, Inc. |
|---|
