Hydraulic Unit, 14-16GPM@ 2000PSI,Hatz,Alum.Frame

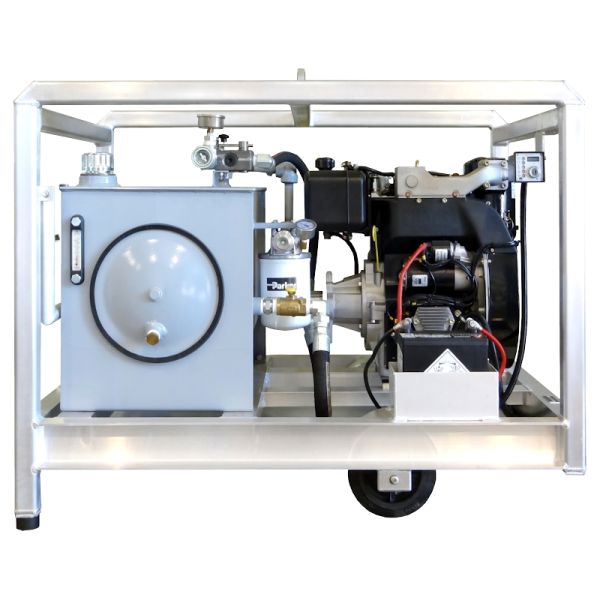

14 GPM HYDRAULIC POWER UNIT (HU-014)

Powered by a Hatz 18 HP diesel angine and possessing a 20 gallon (75 l) hydraulic oil reservoir, Divers Supply's HU-014 portable hydraulic unit provides 14 GPM (53 l/min) to run most hydraulic tools used by divers inland or offshore. The HU-014 is designed to be a rugged, reliable commercial grade hydraulic unit built to withstand harsh offshore environments.

HU-014 Features
14 GPM (53 l/min) flow
Oil sight/temp glass
150 micron suction strainer
5 micron spin-on filter
Adjustable, compensating flow control valve
In-line flow meter
Heavy duty gear pump
1" Quick disconnects
2" Aluminum square tube frame with wheels, handle and drip pan

HU-014 Specifications
Engine: Hatz 2G40E diesel engine
Flow: 14 GPM (53 l/min)
Operating Pressure: 2000 psi (138 bar)
Power: 18 HP (13.4 kw)
Reservoir Capacity: 20 Gallons (75 l)
Fuel Tank Capacity: 1.8 Gallons (7 l)
Filled Weight: 750 lb (340 kg)
Dimensions: 50"L x 38"W x 43"H (127cm x 96.5cm x 109cm)

Hatz 2G40E Engine Specifications
Diesel powered
18 HP (13.4 kw) at 2800 RPM
Air cooled
2-Cylinder, 4 stroke
Electric start
