Subsalve is the worldwide leader and innovator in the design and manufacture of engineered inflatables. It is the only major lift bag brand that offers polyurethane-coated fabrics in all of our products. They use high-strength synthetic base fabrics including nylon, polyester and Kevlar coated with urethane and urethane blends. The result? These lift bags are more puncture-, abrasion-, and chemical-resistant than other conventional inflatables. This allows for a longer service life with less maintenance required. All Subsalve products are designed to perform in harsh and hostile environments. With their exclusive polyurethane coatings, you can count on them to get the job done like no other inflatable.
PFE-12000 Specifications
Lift Capacity: 12,200 lb (5500 kg)
Diameter: 70" (1.79 m)
Overall Height: 130" (3.33 m)
Package Cube Dimensions: 41" x 41" x 12" (104cm x 104cm x 31cm)
Weight: 125 lb (56.7 kg)
Multiple Applications

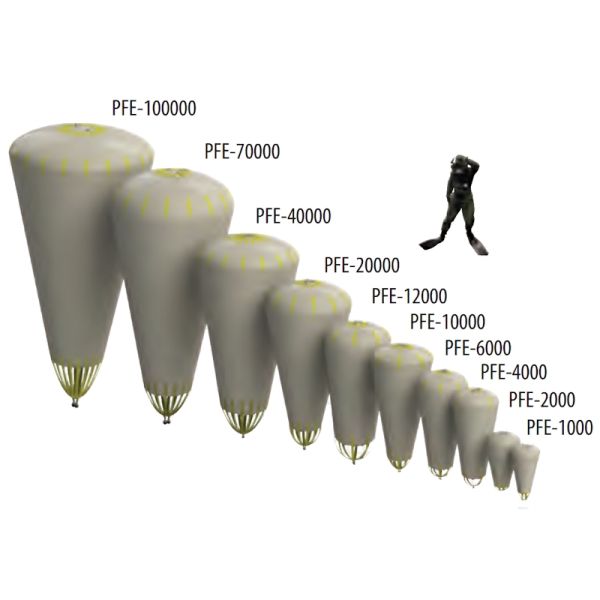

Versatile and easy-to-use, these enclosed-bottom, parachute-shaped lift bags with a single attachment point are essential in construction, heavy and light salvage and many offshore tasks.
“Inverted water droplet” design facilitates maximum lift capacity with least possible weight, with stress distributed evenly over the fabric surface.
Able to be pre-inflated when necessary
Will not dump air if the bag breaks the surface of the water
Pressure relief valves at the bottom of the bag avoid over pressurization of the lift bag
Equipped with all the necessary hardware and ready for immediate use.cEach SUBSALVE USA lift bag is tested prior to shipping.
Fabric
Urethane-coated nylon—high-strength and heavy-duty
Superior abrasion resistance
Resistant to most petro-chemicals
UV-resistant
Low maintenance requirements and easy to clean
RF welded seams
Easy to use
Designed with a replaceable heavy-duty nylon webbing lift harness fabricated into the skin of the bag, which bears the load and provides a safe working ratio of 6:1.
Fitted with a 3/4? NPT inflation port with quick disconnect or cam lock fitting and a 3/4? stainless steel ball valve for rapid deflation.
Regulatory
Each SUBSALVE USA lift bag is tested prior to shipping
All Subsalve USA products are compliant with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards.
