Subsalve is the worldwide leader and innovator in the design and manufacture of engineered inflatables. It is the only major lift bag brand that offers polyurethane-coated fabrics in all of our products. They use high-strength synthetic base fabrics including nylon, polyester and Kevlar coated with urethane and urethane blends. The result? These lift bags are more puncture-, abrasion-, and chemical-resistant than other conventional inflatables. This allows for a longer service life with less maintenance required. All Subsalve products are designed to perform in harsh and hostile environments. With their exclusive polyurethane coatings, you can count on them to get the job done like no other inflatable.

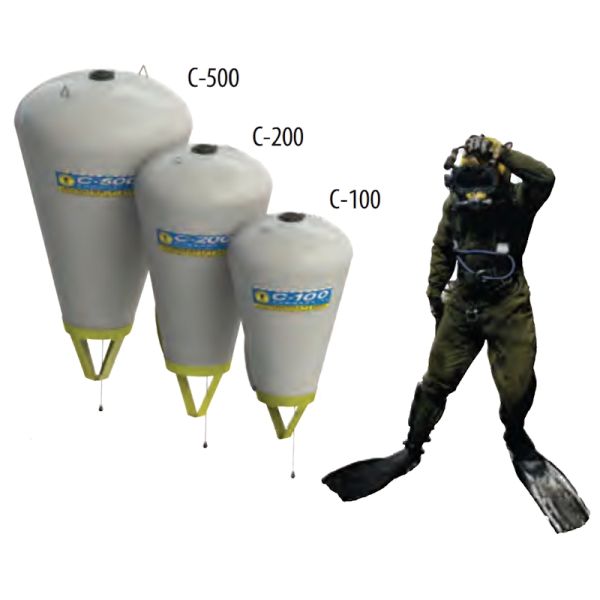

C-200 Specifications
Lift Capacity: 220 lb (100 kg)
Diameter: 22" (0.56 m)
Overall Height: 36" (0.92 m)
Package Cube Dimensions: 15" x 11" x 7" (38 cm x 28 cm x 18 cm)
Weight: 7 lb (3.18 kg)
Multiple Applications
Light salvage
Object recovery
Underwater construction
Scientific research
Excellent Portability
Fraction of the cost of a barge or crane
Easy for a single diver to use
Especially suited for remote locations
Deployable from small craft
Easy to Use
Proprietary SUBSALVE USA Plunger Dump Valve allows air control with a push of a button at the top of the bag and a lanyard at the bottom—vent air from above, beside, or below the lifting bag to achieve desired ascent rate.
1/4? NPT inflation port for remote filling, multiple bag manifolding, or to install optional stainless steel quick disconnect.
Ready for immediate use—factory-equipped with all necessary hardware
Fabric
Urethane-coated nylon—high-strength and heavy-duty
Superior abrasion resistance
Resistant to most petro-chemicals
UV-resistant
Low maintenance requirements and easy to clean
RF welded seams
Lift Straps Designed for Safety
6,000 lb (2,722 kg) load rated high strength resin-treated nylon webbing
Sewn directly to the bottom of the bag
Safe working ratio of 6:1
Regulatory
Each SUBSALVE USA lift bag is tested prior to shipping
All Subsalve USA products are compliant with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards.
