Magnet, Miko, 330#, Cam Handle & Lifting Eye

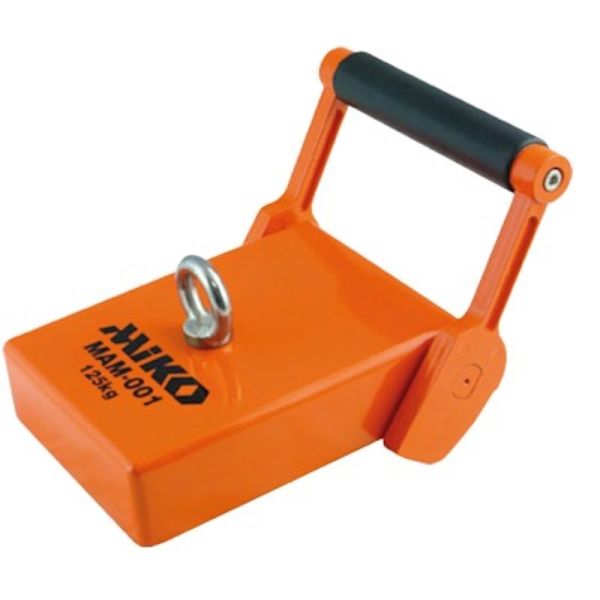

MIKO ANCHOR MAGNET (MAM-001)

Miko Anchor Magnets form a series of powerful and robust underwater fixing points. With holding forces ranging from 200 lb (90 kg) to 4400 lb (2000 kg), these magnets are used worldwide for a wide range of applications.

The magnetic component consists of neodymium which is coated with epoxy to improve its corrosion resistance in sea water.

MAM-001 has a holding force of 330 lb (150 kg) and can be used for fastening equipment such as Miko Plasters, diving equipment, guide wires or anchor points for divers to ship sides or other steel structures.

The magnet is equipped with a mooring lug and breaking lever for easy release and safe operation. The bottom is fitted with a rubber filling for increased friction and improved usability.

All Miko magnets are shipped in a double-skin steel box to isolate the magnetic field and to prepare them for air freight.

MAM-001 Specifications
Holding Force: 330 lb (150 kg)
Footprint: 6.1" x 4.5" (155mm x 115mm)
Net Weight: 6.6 lb (3 kg)
Gross Weight (with Box): 15.4 lb (7 kg)
