Pump, Trash,4" Inlet/4" Cam-Lock Discharge,800 gpm

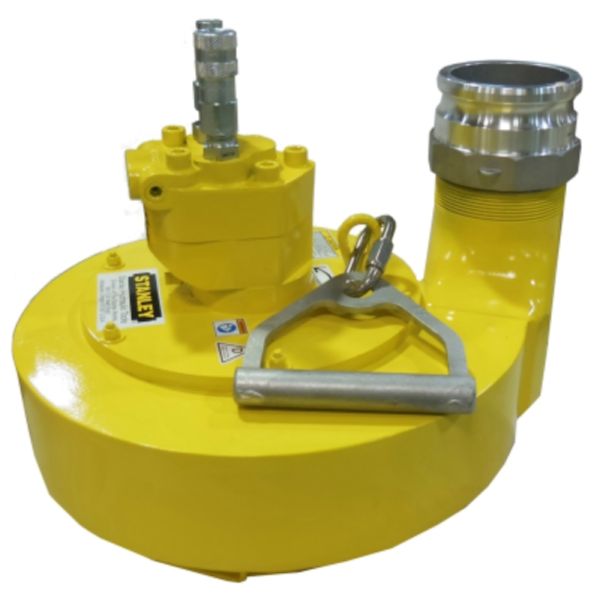

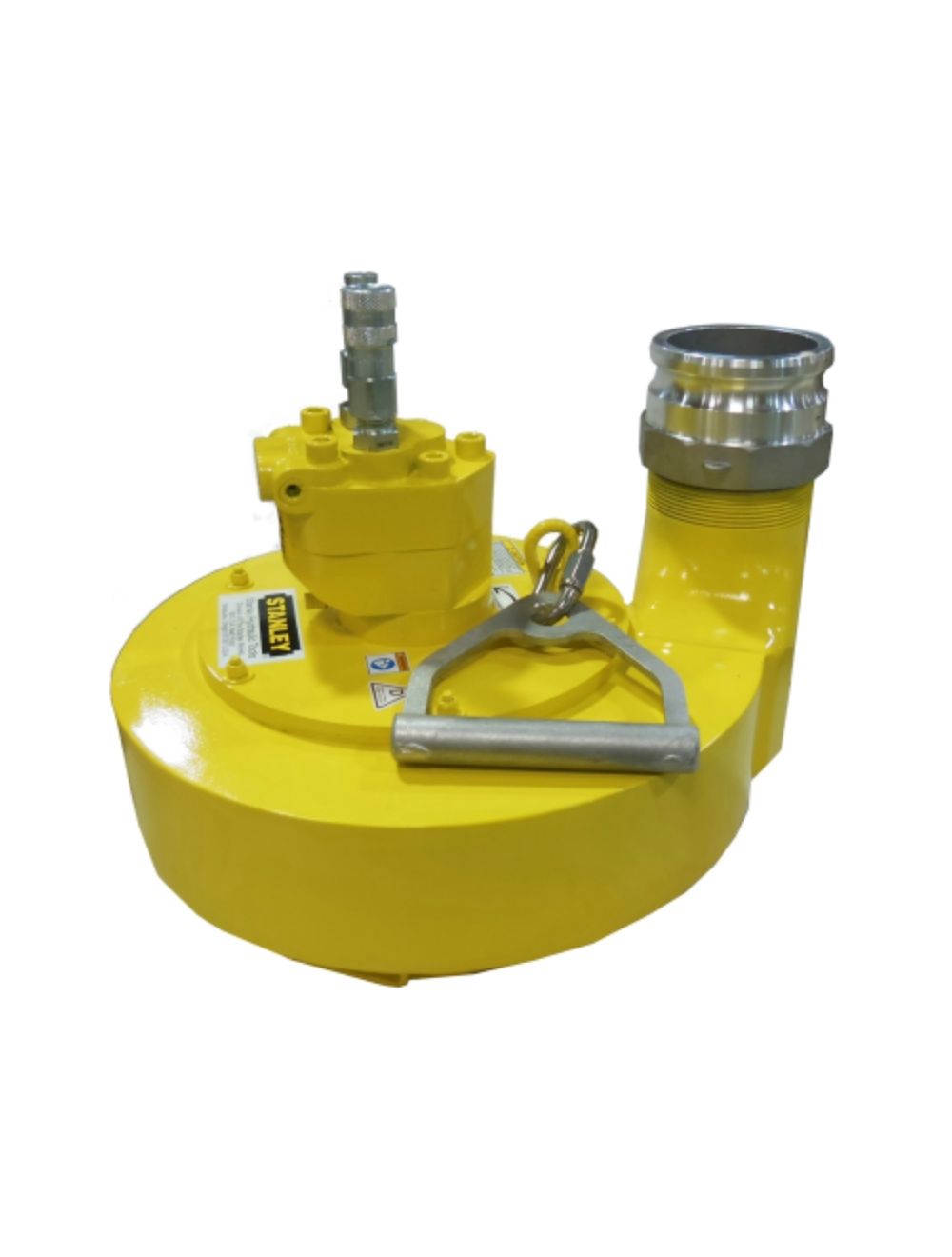

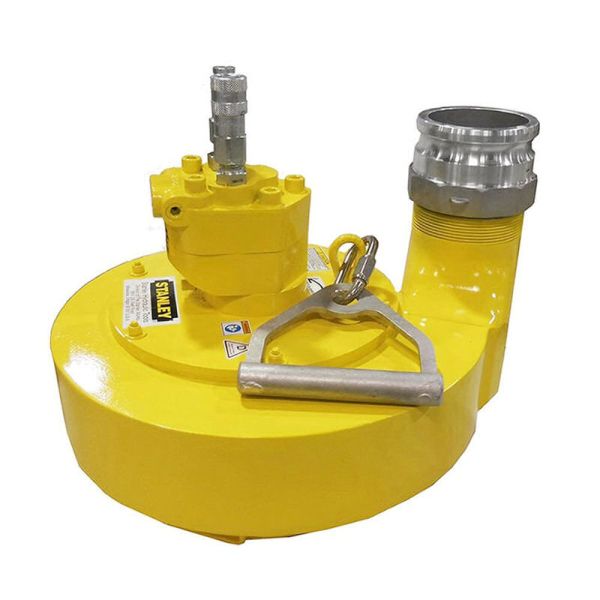

STANLEY TP08 TRASH PUMP (TP08013)

The Stanley TP08 Trash Pump is a lightweight, heavy duty pump capable of pumping high volumes of water, sand slurries, gravel, sludge and solids up to 3" (75mm) in diameter. The TP08 is submersible, self priming and can run dry without damage to the motor, bearings or impeller.

The TP08 has been designed to get the most from an HTMA Type II hydraulic circuit. Using only 9 gpm (34 lpm) of hydraulic flow, the TP08 will pump over 800 gpm (3,028 lpm) at a 10' (2.54m) head. The free-flow impeller and 4" (100mm) inlet and outlet combine to make the TP08 one of the most efficient pumps in the business.

The heavy-duty construction of the TP08 features a fabricated, all steel volute and abrasion resistant cast iron impeller. The volute uses replaceable UHMW polyeth-ylene wear plates to reduce wear and extend pump life. The heavy-duty Stanley HYREVZ hydraulic motor is self-lubricating

TP08013 Specifications
Capacity: 800 gpm (3,028 lpm)
Flow Range: 7-9 gpm (26-34 lpm)
Maximum Flow: 9 gpm (34 lpm)
Pressure: 2000 psi (140 bar)
Weight: 59 lb (26.7 kg)
Height (over handle): 16.5" (42cm)
Length: 19" (48.3cm)
Width: 15" (38.1cm)
Ports: #10 SAE (Press.) #12 SAE (Ret.)
Connection Size and Type: 1/2" male pipe (Press.) 3/4" male pipe (Ret.)
Discharge Diameter: 4" (10cm) Camlock
Inlet Diameter: 4" (10cm)
