Q.D., Coupler, 1" FPT, Cad Plated Steel
$89.95
Availability:
In stock
SKU
VHC-16-16F

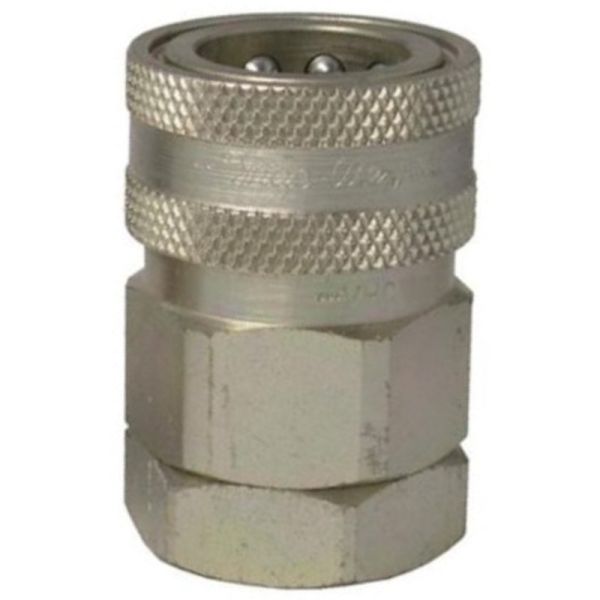

1" PARKER SNAP-TITE STEEL QUICK COUPLER (VHC-16-16F)
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHC-16-16F Specifications:
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHC-16-16F Specifications:
| Material: Cad plated steel | ||||||||||||
| Type:1" PARKER SNAP-TITE STEEL QUICK COUPLER (VHC-16-16F) H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications. H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available. VHC-16-16F Specifications:
|
||||||||||||
| Series: Popet valve | ||||||||||||
| Seals: Nitrile | ||||||||||||
| Body Size: 1" | ||||||||||||
| Port End Size: 1"-11-1/2 NPTF female | ||||||||||||
| Maximum Working Pressure: 2000 psi (138 bar) | ||||||||||||
| Length: 2.67" (67.8mm) | ||||||||||||
| Largest Diameter: 2.17" (55.1mm) | ||||||||||||
| Wrench Flats: 1.88" (47.8mm) | ||||||||||||
| Mating Nipple: VHN-16-16F |
| Vendor | Connector Specialists |
|---|
