Q.D., Nipple, 1" FPT, Cad Plated Steel
$0.00
Availability:
In stock
SKU
VHN-16-16F

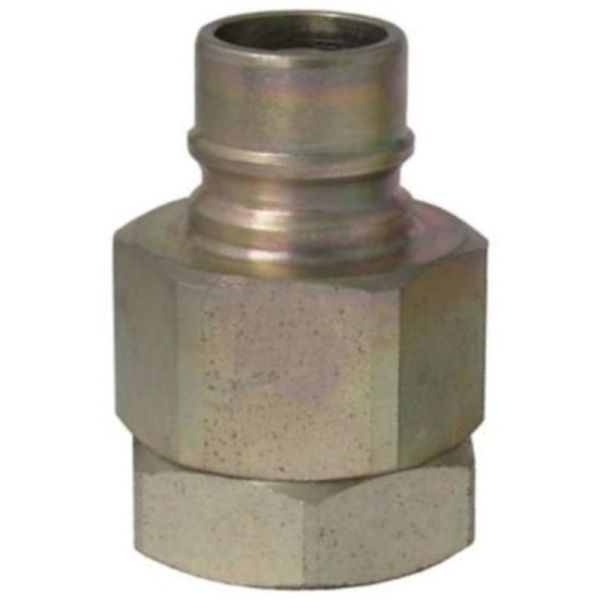

1" PARKER SNAP-TITE STEEL NIPPLE (VHN-16-16F)
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHN-16-16F Specifications:
H Series, original Snap-tite design couplings have been proven by years of use on hydraulic applications.
H Series is best suited for general purpose fluid applications where either single or double shut-off valving is desired. A wide range of sizes, materials and end configurations are available.
VHN-16-16F Specifications:
| Material: Cad plated steel |
| Type: Valved |
| Series: Popet valve |
| Seals: Nitrile |
| Body Size: 1" |
| Port End Size: 1"-11-1/2 NPTF female |
| Maximum Working Pressure: 2000 psi (138 bar) |
| Length: 2.55" (64.8mm) |
| Largest Diameter: 2.17" (55.1mm) |
| Wrench Flats: 1.88" (47.8mm) |
| Mating Coupler: VHC-16-16F |
| Vendor | Connector Specialists |
|---|
