Radio, Two Diver,Air,12/110V,Internal Recharge,Mic

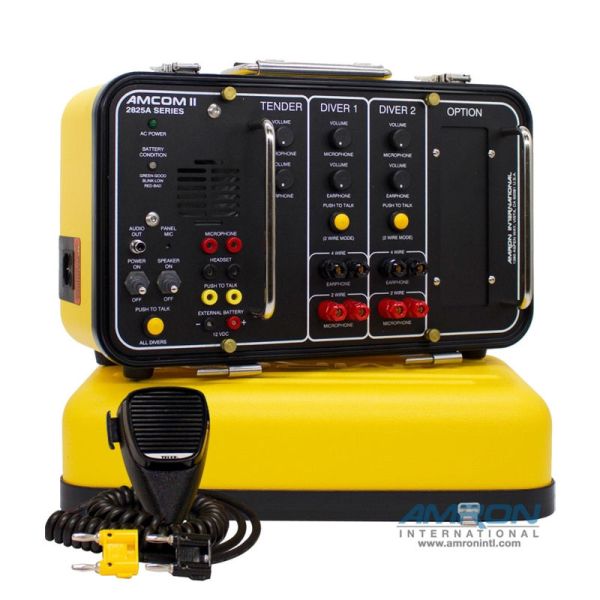

AMCOM II TWO DIVER RADIO (2825A-11)

The AMCOM II 2825A-11 Two-Diver Deluxe Portable Communicator features separate channels and volume controls for each diver and the tender so that uplink and downlink paths can be customized for varying equipment configurations and individual comfort levels

This newest version of the AMCOM II has the same versatile user-interface, rugged durability and great sound quality as its predecessor with separate channels and volume controls for both divers and the tender so uplink and downlink paths can be customized for various equipment configurations and individual comfort levels in addition to: (1) Inhalation Noise Reduction (INR); (2) Higher Audio Fidelity; (3) Automatic Gain Adjustment; (4) Extended Battery Life; (5) Flexible Gain Settings; (6) Ultra-Low Electromagnetic Interference (EMI); (7) Outdoor IP65 Rated AC Power Module and; (8) Customer’s Choice of Country-Specific V-Lock IP54 Rated AC Power Cord.

Features
Separate channels and volume controls for each diver and tender to accommodate individual earphone and microphone adjustments, equipment variations and individual comfort levels
Divers’ umbilicals can be set up on 4-wire mode (full duplex) or 2-wire mode (push-to-talk) or any combination of the two modes for each diver.
Ability to use both dynamic and pre-amplified diver microphones with a unique circuit that detects microphone type and automatically adjusts volume levels.
Weatherproof push-to-talk microphone for better voice intelligibility topside.
Internal charger allows for simultaneous charging and operation of the unit while protecting the rechargeable battery from being overcharged. Automatically supplies power to the audio amplifier when AC power is disconnected to allow for continued operation.

Specifications
Input Impedance (Each Input): 250 Ohms
Frequency Response: 300 - 10000 Hz
Common Mode Rejection: 40 dB Minimum
Current Drain Maximum Full Volume: 3 Amps
Minimum Quiescent: 0.190 Amps
Output Impedance: 4 Ohm
Power Supply Voltage: 12 VDC Nominal(9 Volts Minimum - 16 Volts Maximum)
AC Power Operating Range: 90-264 VAC, 50-60 Hz
Sensitivity (Input): 0.5 mV
Output Power (RMS @ 4 Ohm Load, 12 VDC): 10 Watts Audio
Battery Life: 45 hours
Weight: 17.25 lb (7.82 kg)
Dimensions: 14.5"L x 9"W x 10"H (36.8cm x 22.9cm x 25.4cm)
