Stinger, Broco, U/W Welding,Gray

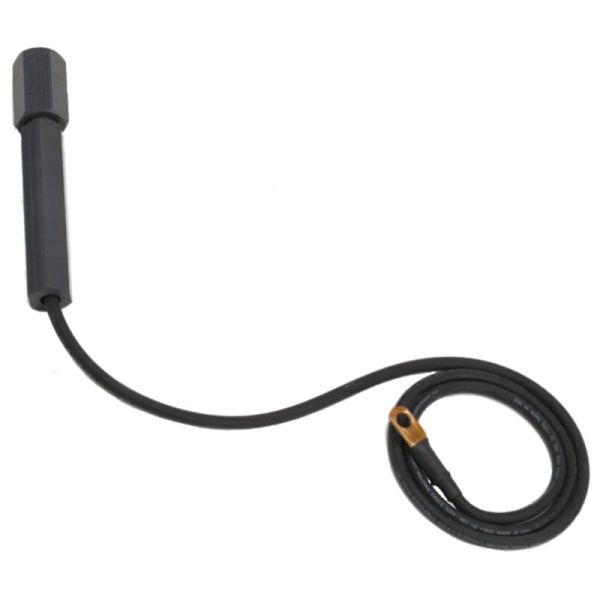

BROCO WELDING STINGER (BR-21)

This compression welding stinger is engineered with superior features. The BR-21 is lightweight, durable and designed to hold the electrode at the optimum angle to reduce diver fatigue.

Selected features of the BR-21 include an index notch on the head to help divers find the hole which improves rod insertion even in a low-visibility environment. The beveled seat keeps the electrode at the ideal angle and the groove eliminates electrode wiggle. The over-sized head is easier to hold and the handle and head are from hexagonal stock for sure gripping by a gloved hand. The BR-21 also includes a resistance O-ring on the shoulder to ensure tension when the head is tightened and increase head life.

Use the BR-21 stinger with Broco mild steel (SofTouch & EasyTouch), stainless steel and nickel electrodes.

PART NUMBER	DESCRIPTION
UW-CS-1	SofTouch Wet Welding Electrodes AWS E7014 Mild Steel, 1/8”(3.20mm) 8-lb. Tube Approx. 95 Electrodes
UW-CS-2	SofTouch Wet Welding Electrodes AWS E7014 Mild Steel, 5/32”(3.97mm) 8-lb. Tube Approx. 69 Electrodes
UW-CS-3	SofTouch Wet Welding Electrodes AWS E7014 Mild Steel, 3/16”(4.76mm) 8-lb. Tube Approx. 48 Electrodes
UW-SS-1	SofTouch Wet Welding Electrodes AWS E312-16 Stainless Steel, 1/8”(3.20mm) 8-lb. Tube Approx. 95 Electrodes
UW-SS-2	SofTouch Wet Welding Electrodes AWS E312-16 Stainless Steel, 5/32”(3.97mm) 8-lb. Tube Approx. 69 Electrodes
UW-EZ-1	EasyTouch Wet Welding Electrodes AWS E7014 Mild Steel, 1/8”(3.20mm) 8-lb. Tube Approx. 95 Electrodes
UW-EZ-2	EasyTouch Wet Welding Electrodes AWS E7014 Mild Steel, 5/32”(3.97mm) 8-lb. Tube Approx. 69 Electrodes
UW-EZ-3	EasyTouch Wet Welding Electrodes AWS E7014 Mild Steel, 3/16”(4.76mm) 8-lb. Tube Approx. 48 Electrodes
UW-HN332	High Nickel Electrodes, 3/32” ( 2.38mm) 5-lb. Tube Approx. 75 Electrodes
