Torch, Broco, Underwater Oxy-Arc Cutting,3/8"Colle

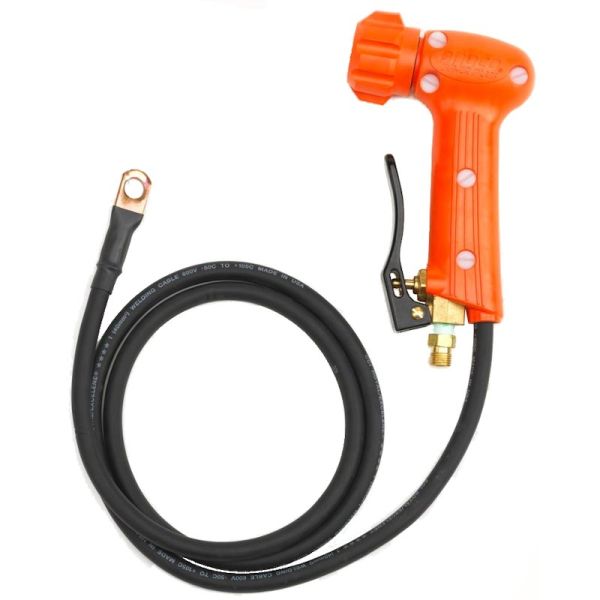

BROCO UNDERWATER CUTTING TORCH (BR-22 PLUS)

The BR-22 PLUS Cutting Torch is ergonomically designed for diver comfort and reducing forearm fatigue. The torch is constructed from durable high-impact and corrosion resistant materials. Broco torches are also easy to maintain.

Broco torches are easy to maintain. The BR-22 PLUS features 21 design improvements, including the removal of all rubber from direct oxygen pathway, a PTFE lined fiberglass reinforced coupler hose, improved flash arrestor with higher oxygen flow rate and better flash back protection, non-return valve to prevent back flow, and improved collet and collet washer design. Acme threads prevent binding from mud or other debris insuring quick, reliable rod insertion and retention. Interchangeable collets accommodate 3/8" and 1/4" diameter cutting rods.

The BR-22 PLUS can also be used as a welding electrode holder. The BR-22 PLUS Cutting Torch is built to deliver years of trouble-free performance at minimum cost. We strongly recommend keeping spare parts on hand. Spare parts kits are available.

Collet Kits

Part No.	Description
UWBR22C18K	1/8" (3mm) Collet with Washer
UWBR22C532K	5/32" (4mm) Collet with Washer
UWBR22C316K	3/16" (5mm) Collet with Washer
UWBR22C14K	1/4" (6mm) Collet with Washer
UWBR22C516K	5/16" (8mm) Collet with Washer
UWBR22C38K	3/8" (9.5mm) Collet with Washer

Spare Parts

Part No.	Description
UWBR22RCSK	Complete Spares Kit for BR-22 PLUS
UWBR22R08K	Control Valve Repair Kit
UWBR22ROSK	O-ring Kit
UWBR22A01	Handle Set with Screws, Nuts and O-rings
UWBR22A03	Torch Head and Cable Assembly
UWBR22A04	Collet Nut
UWBR22A05	Flash Arrestor
UWBR22A06	Check Valve Assembly
UWBR22A07	Coupler Hose Assembly
UWBR22A08	Control Valve Assembly
UWBR22A09	Replacement Valve Lever with Screw and Nut
UWBR22N014	Collet to Head Neoprene O-ring
UWBR22W00	Welding Collet Washer
