Torch, Broco, Underwater Oxy-Arc Cutting,3/8"Colle

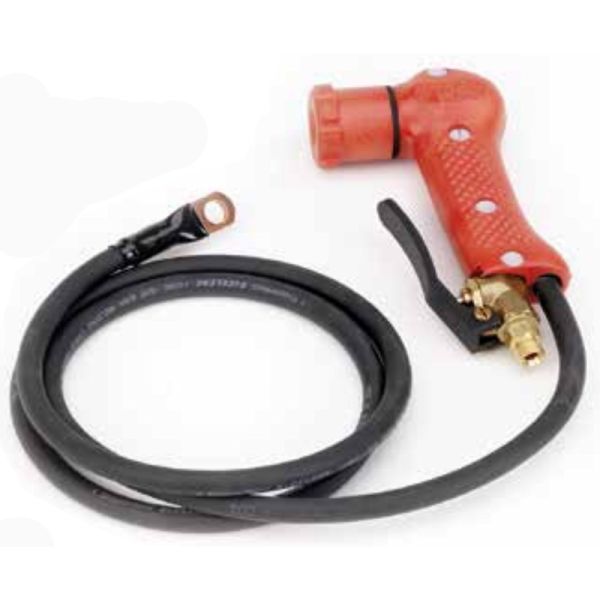

BROCO UNDERWATER CUTTING TORCH (BR-22)

The BR-22 Cutting Torch is ergonomically designed for diver comfort and reducing forearm fatigue. The torch is constructed from durable high-impact and corrosion resistant materials. Most metal parts are brass. The non-conductive flexible coupler joining the oxygen control valve to the torch head is a key safety feature, unique in design and found only in Broco torches.

Broco torches are easy to maintain. The flash arrestor is brass with an internal filter screen. The large collet nut is knurled to assure the diver a solid grasp. Acme threads prevent binding from mud or other debris insuring quick, reliable rod insertion and retention. Interchangeable collets accommodate 3/8" and 1/4" diameter cutting rods.

The BR-22 can also be used as a welding electrode holder. The BR-22 Cutting Torch is built to deliver years of trouble-free performance at minimum cost. We strongly recommend keeping spare parts on hand. Spare parts kits are available.

Collet Kits

Part No.	Description
TA-2218	1/8" (3mm) Collet with Washer
TA-22532	5/32" (4mm) Collet with Washer
TA-22316	3/16" (5mm) Collet with Washer
TA-2214	1/4" (6mm) Collet with Washer
TA-22516	5/16" (8mm) Collet with Washer
TA-2238	3/8" (9.5mm) Collet with Washer

Spare Parts

Part No.	Description
UW-CSP	Complete Spares Kit for BR-22
UW-MSP	Mini Spares Kit for BR-22
101/102	Handle Set
104	Collet Nut
105	Compression Washer (Neoprene)
108	Flash Arrestor Screen
109	Oxygen Valve Lever
111-A	Coupler Assembly
113	Oxygen Valve Body
114	Valve Stem Spring
117	Valve Stem Washer (Neoprene)
119/120	Valve Lever Screw & Locknut
121/122	Handle Screws & Nuts (Nylon)
123	Collet Washer (Neoprene)
