Umbilical, 3 Member,Twist 3/8"A/F,P/H,Com/St,NoFit
$14.95
Availability:
In stock
SKU
UDA0103

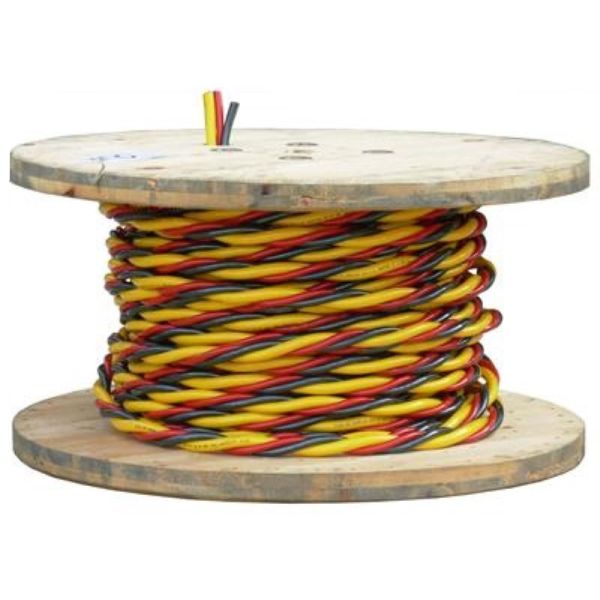

3-MEMBER TWISTED DIVE UMBILICAL (UDA0103)
Lightweight, ultra flexible and kink resistant, Aquaflow Umbilicals are ideal for breathing gas supply, comms and pneumo service for surface demand umbilicals. They can be produced in production runs up to 2400 feet (740 meters) long and can be over extruded or braided for additional protection against abrasion and use in contaminated waters.
The unique materials and cabled “rope-like” construction combine to produce the most flexible, controlled buoyancy umbilicals available today. The umbilicals have no need for tape, the repairs are much reduced and they have a longer life. They keep the professional diver safer and more efficient both while diving and on deck. They will ultimately reduce costs for the operator.
UDA0103 is the unterminated, bare twisted umbilical comprised of the diver's breathing gas hose, pneumo hose and comm wire. For termination options, see TWIST KIT 1, TWIST KIT 2, TWIST KIT 3, TWIST KIT 4, and TWIST KIT 5. The terminated twisted umbilicals are pressure tested adn certified.
Diver's Breathing Gas Hose Specifications
Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
Pneumo Hose Specifications
Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
Comms Cable Specifications
Features flexible, fatigue resistant construction and tough, abrasion resistant polyurethane outer jacket.
Lightweight, ultra flexible and kink resistant, Aquaflow Umbilicals are ideal for breathing gas supply, comms and pneumo service for surface demand umbilicals. They can be produced in production runs up to 2400 feet (740 meters) long and can be over extruded or braided for additional protection against abrasion and use in contaminated waters.
The unique materials and cabled “rope-like” construction combine to produce the most flexible, controlled buoyancy umbilicals available today. The umbilicals have no need for tape, the repairs are much reduced and they have a longer life. They keep the professional diver safer and more efficient both while diving and on deck. They will ultimately reduce costs for the operator.
UDA0103 is the unterminated, bare twisted umbilical comprised of the diver's breathing gas hose, pneumo hose and comm wire. For termination options, see TWIST KIT 1, TWIST KIT 2, TWIST KIT 3, TWIST KIT 4, and TWIST KIT 5. The terminated twisted umbilicals are pressure tested adn certified.
Diver's Breathing Gas Hose Specifications
Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
| Aquaflow HDA0106 |
| Inner Diameter: 3/8" (9.5 mm) |
| Outer Diameter: 0.66" (16.8 mm) |
| Minimum Bend Radius: 2" (50 mm) |
| Working Pressure: 500 psi (35 bar) |
| Burst Pressure: 2000 psi (140 bar) |
| Weight in Air: 0.119 lb/ft (177 g/m) |
| Weight in Sea Water: -0.034 lb/ft (-50 g/m) |
| Color: Yellow |
Pneumo Hose Specifications
Construction comprises an extruded core tube, reinforcement of high strength yarn and a bonded outer cover. Both tube and cover are extruded from high performance thermoplastic polymers which are particularly clean and free from odors often associated with conventional rubber hoses. Coupled with the wide operating temperature range this ensures breathing gas quality is maintained under all conditions from -4°F to 150°F (-20°C to 66°C).
| Aquaflow HDA0104 |
| Inner Diameter: 1/4" (6.3 mm) |
| Outer Diameter: 0.50" (12.7 mm) |
| Minimum Bend Radius: 1.25" (32 mm) |
| Working Pressure: 300 psi (21 bar) |
| Burst Pressure: 1200 psi (84 bar) |
| Weight in Air: 0.078 lb/ft (116 g/m) |
| Weight in Sea Water: -0.009 lb/ft (-14 g/m) |
| Color: Black |
Comms Cable Specifications
Features flexible, fatigue resistant construction and tough, abrasion resistant polyurethane outer jacket.
| CDR010411 |
| 2 x 20 awg screened pairs |
| Diameter: 0.433" (11 mm) |
| Braided strength member |
| Breaking Strength: 1100 lb (500 kgs) |
| Jacket: Polyurethane |
| Color: Red |
| Vendor | Umbilicals Int'l |
|---|
