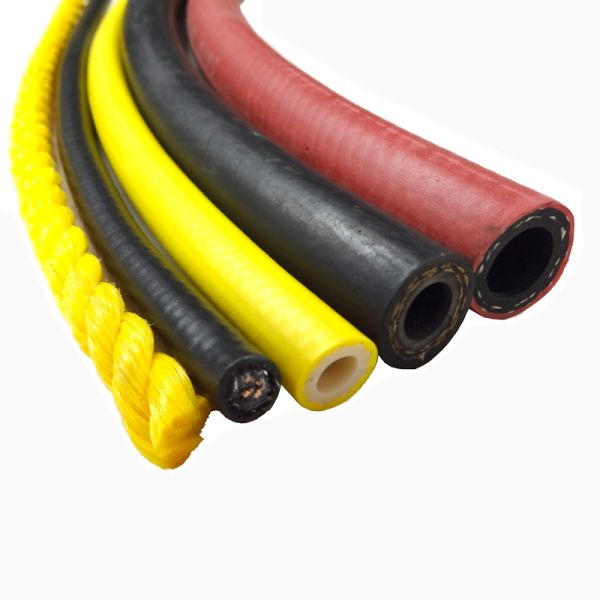

TAPED, 5-MEMBER HOT WATER DIVE UMBILICAL COMPONENTS, 200-299' (UMBILICAL 2H)
Divers Supply has long been the umbilical headquarters for the dive industry. We carry thounds of feet of ready to dive umbilicals, assembled in our warehouse and provided with all proper testing certifications. Our standard umbilical complies with all USCG and ADCI standards.
UMBILICAL 2H allows selection of any umbilical length between 200 and 299 feet. This item must be paired with UMB KIT 2H for standard tail lengths, terminations, tape, color coding, and pressure testing and certification.
Specifications
Diver's Breathing Gas Hose: Gates 3/8” I.D. (33HB.375) Dive Master diver's breathing gas hose.
Pheumo Hose: 1/4” I.D. PNEUMO HOSE; Approx. 2’ longer than the diver's breathing gas hose on the diver’s end and approx. 15’ longer than the diver's breathing gas hose on the surface end with a 25B oxygen female brass reusable hose end on the surface end.
Communication: SPIRAL 4 armor jacket communication wire; Approx. 5’ longer than the diver's breathing gas hose on the diver’s end and approx. 15’ longer than the diver's breathing gas hose on the surface end.
Lifeline: 3/8” polypro rope MONOROPE; Approx. 15’ longer than the diver's breathing gas hose on the surface end and a 2” stainless steel D-ring eye-spliced to the lifeline located approx. 52” back from the diver’s end of the diver's breathing gas hose.
Taped with 2” wide high grade black duct tape, approx. 8 to 10 inches apart, the full length of the umbilical.
Pneumatic pressure test of the diver's breathing gas hose to 1.5 times the designed working pressure of the umbilical. Pressure test certificate provided.
Umbilical identity tag is located on the surface end of the diver's breathing gas hose.
Length markings color coding meets the ADCI recommended standard.
Weight: 0.58 lb per foot
While this is our standard configuration, we can make custom umbilicals to meet your needs - just give us a call!
Reinforcement: Braided, high tensile synthetic textile cord
Cover: Type A (chloroprene), black, perforated
Design Factor: 4:1
Weight: 0.19 lb/foot (283 g/m)
Standards: Meets BS EN250:2014
Cleanliness: At the factory, the length of hose is rinsed with water for 30 seconds to 1 minute, followed by a sponge plug blown through the hose to remove water. As second, alcohol soaked sponge is then blown through the hose. followed by air for 30 seconds.
