Valve, Ball, 1/4" FPT,S/S Nut/Handle,Brass,600 PSI
$30.79
Availability:
In stock
SKU
V500P-4-02

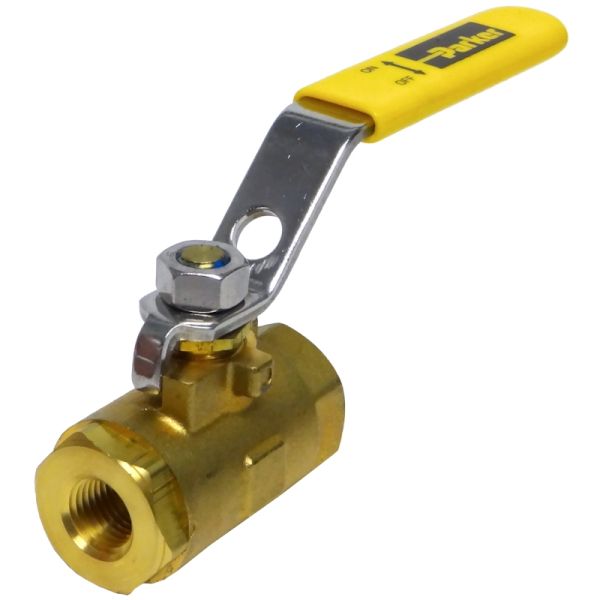

PARKER 1/4" BALL VALVE (V500P-4-02)
Series 500 low pressure ball valves provide total shut-off capability for services up to 41 Bar (600 PSI).
A quarter turn of the handle is on or off. Ball valves are not intended for use as a throttling valve. Attempting to use it in these applications may result in premature seal failure and/or inability to turn the valve handle.
Series 500 low pressure ball valves provide total shut-off capability for services up to 41 Bar (600 PSI).
A quarter turn of the handle is on or off. Ball valves are not intended for use as a throttling valve. Attempting to use it in these applications may result in premature seal failure and/or inability to turn the valve handle.
| Features: |
|---|
| Ball valve bodies are machined from high quality CA377 forgings which provide extended service life and resist failure caused by severe temperature conditions. |
| Highly inert PTFE seats and seals provide resistance to chemical corrosion. |
| Blowout proof stem design, chrome plated brass ball and a special design handle enable increased turn and leverage for ease of opening and closing. |
| Specifications: |
|---|
| Inlet: 1/4" NPT female |
| Outlet: 1/4" NPT female |
| Maximum Working Pressure: 600 PSI (41 bar) |
| Cv: 4.0 |
| Body: Brass |
| Handle: Stainless steel |
| Body Length: 2.03" (5.16cm) |
| Overall Length: 4.90" (12.45cm) |
| Overall Height: 2.47" (6.27cm) |
| Vendor | Connector Specialists |
|---|
