Valve, Needle, O2 Male In x 1/4"MPT Out,200PSI,Bra
Valve, Needle, 1/4"MPT In x 1/4"FPT Out,3000PSI,Br
Valve, Needle, 1/4"MPT In x 1/4"MPT Out,3000PSI,Br

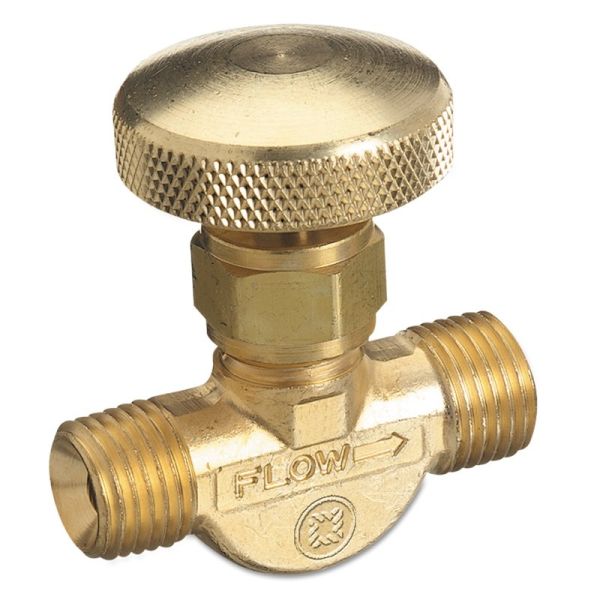

BRASS NEEDLE VALVE (211)
Specifications: |
Inlet Connection: 1/4" NPT male |
Outlet Connection: 1/4" NPT male |
Maximum Rated Pressure: 3,000 PSIG (20.7 bar) |
Maximum Burst Pressure: 9,000 PSIG (620 bar) |
Operating Temperature: -20°F - 120°F (-28.9°C - 48.9°C) |
Number of Rotations: ~2-1/2 |
Rotations to Full Open: ~1-3/4 |
Full Open Flow Coefficient (Cv): 0.35 |
