Video, Syst,Color,325 Del 401LED,330',SD DVR,Key B
Video, Syst,Color,330/P,401LED,500',1TB HDD/DVR

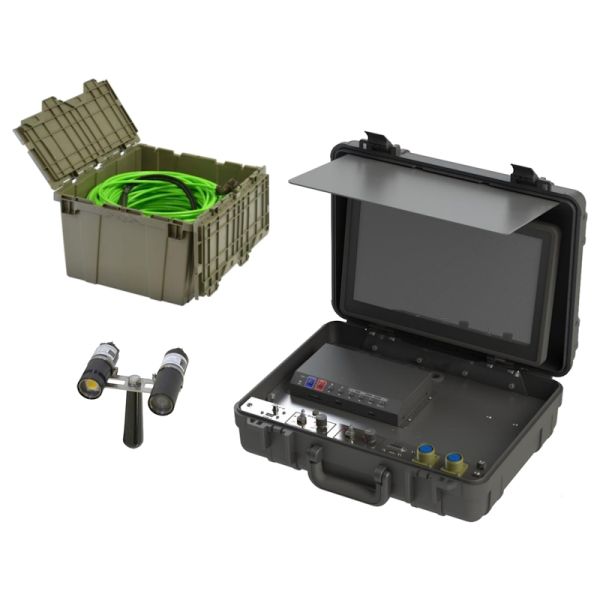

OUTLAND TECHNOLOGY COMPLETE PORTABLE COLOR HIGH DEFINITION VIDEO SYSTEM WITH LED LIGHT (UWS-3510)
Standard UWS-3510 System Includes:
UWC-330/P |
Fixed focus, HD color camera |
UWL-401 |
LED light |
DHM-60 |
Bracket/Handle |
C-2303C |
500' (150m) video cable with all connectors connectors |
CON-3500/D |
15” 16:9 HD Monitor
HDD Recorder
Power supply with variable light control
Weather-resistant case |
CON-3500/D Specifications
Power: 110-240 VAC; 50/60Hz.; 440 watts max |
Light Control: Variable (0-100%) |
Monitor: 15” ~1600nit, 16:9 1080p HD LCD Color w/audio |
Recorder: High Definition 1TB HDD DVR |
Safety: Low voltage to diver |
Connections: Front panel umbilical connections |
Dimensions (closed case): 18.5" x 14.5" x 6" (46.2cm x 36.2cm x 15cm) |
Weight: 26 lb (11.8 kg) |
UWC-330/P Camera Specifications
Lens: 3.6 mm, F2.0 |
Focus: Fixed |
View Angle: 70 Horizontal (in water) |
Image Device: 1/2.7 in. 2MP CMOS (1933 H x 1088 V pixels)) |
Sensitivity: 1.3 lux @ F2.0 |
Resolution: up to 1933x1088 |
Video Out: 1.2 Vpp |
Power: 12 VDC @ 110 ma. |
Depth Rating: 6560' (2000m) |
Housing: Black Delrin |
Port: Acrylic |
Length: 5.5" (12.7cm) |
Diameter: 1-5/8" (4.1cm) |
Weight: 9.8oz (0.28 kg) Dry, 3.1oz (0.09 kg) Wet |
UWL-401 LED Light Specifications
Power: 24 VDC |
Wattage: 18 watt (equal to 150 watt halogen) |
Output: 700 lux at 3' (1m) |
Depth Rating: 2000' (600m) |
Housing: 6061-t6 Anodized Aluminium |
Length: 5-3/8" (13.6cm) |
Diameter: 1-5/8" (4.1cm) |
Weight: 7oz (0.2kg) Dry, 3oz (0.1kg) Wet |
C-2303C Video Cable Specifications
Length 500' (150 m) |
Surface Termination: 7-Pin Amphenol |
Diver Side Terminations: RMK-5-FS (camera) and RMG-3-FS (light), both with locking sleeves |
Diameter: 0.380" (9.7 mm) |
Conductors: 16 #22 awg and 1 mini RG-59 coaxial |
Outer Jacket: Polyurethane, orange |
Temperature Rating: -40°F to 194°F (-40°C to 90°C) |
Breaking Load: 1,200 lb (544 kg) |
Weight: 38 lb (17 kg) |
More Information
Vendor |
Outland Technology |
